XT-EL1GCA-EM

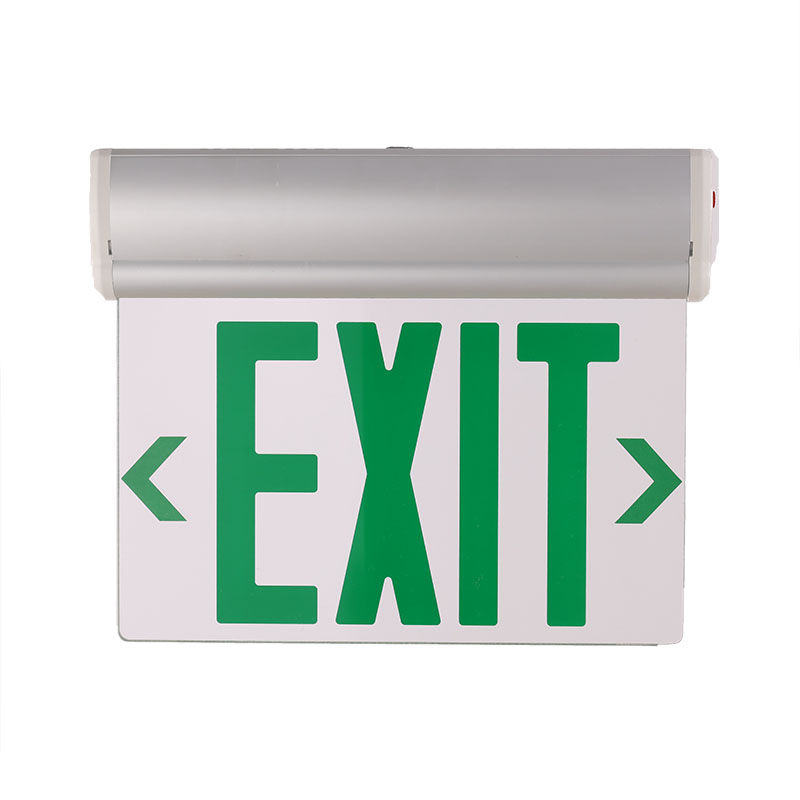

XT-EL1GCA-EM - Edgelit LED Sign with Aluminum Housing, 2.5W, 1001K
Technical Specs
- :: Voltage: 120V-277V AC Dual voltage operation
- :: Power Factor: >0.90
- :: Wattage: 2.5W
- :: Aluminum housing with Clear Panel
- :: Universal ceiling & wall mounting plate allows top, back or end installation
- :: Universal J-box mounting pattern
- :: Test switch and charge indicators
- :: Removable directional indicators (Chevrons)
- :: Optional recessed mounting kit, see accessories.
- :: Single Face. Optional double face plate available, see accessories
- :: Maximum 24 hours for full recharge time
- :: Operating temperature: 32°F to 104°F
- :: Rated life: 90-minute rated battery
- :: 3-Year Warranty
- :: Green letters: 6” height with 3/4” stroke
- :: Built-in 34.8V 400mAh Nickel cadmium battery for minimum 90 minutes emergency operation
- :: Total Lumens: 13LM
- :: Color Temperatures: 1001K
Applications
- :: Ideal for every exit door, at the intersection of corridors, exit stairways or ramps, and such other locations.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | |||
|---|---|---|---|---|
 XT-EL2GM-CP  SPEC INST | Field-Installed Double-Face Mirror Panel only to Convert Single Face to Double Face | |||
 XT-ELRMA SPEC INST | Field-Installed Recessed Mounting Conversion Kit, Order together with Exit Sign |
