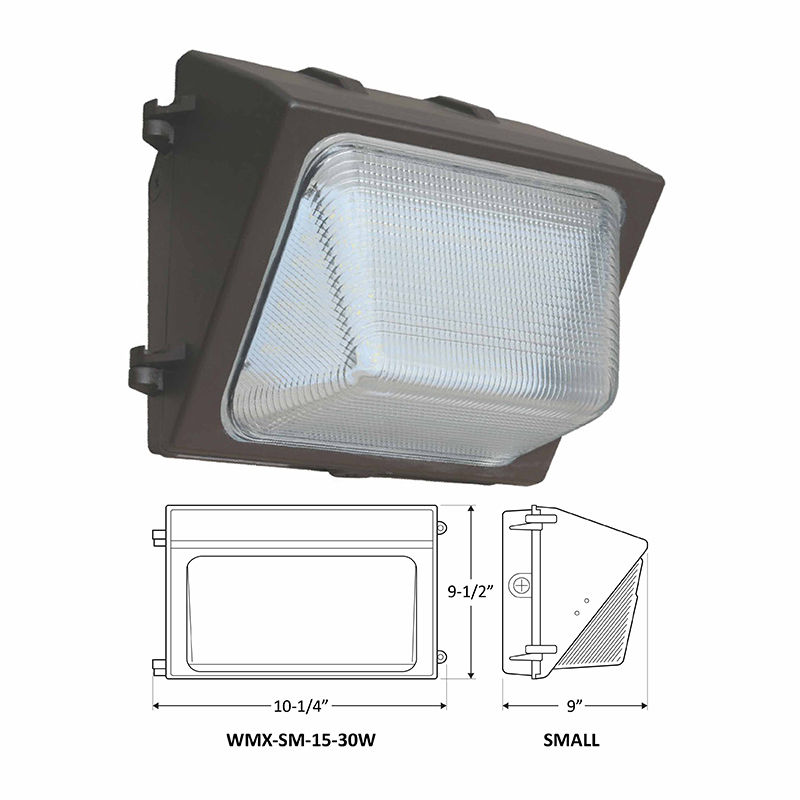

WMX-SM-15-30W-30K
LED Multi-Power Non-Cutoff Wall Packs
Technical Specs
- :: ADC12 Aluminum Heat Sink, Outdoor Powder Coating
- :: Multi-Power Switch is inside the Fixture
- :: Same footprint as traditional HID wall packs
- :: Prismatic Borosilicate Glass Lens
- :: Input Voltage: 120-277V AC 50/60Hz
- :: Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
- :: CRI: >70
- :: Power factor: >0.9
- :: Operating Temperature: -40°F ~ 104°F
- :: 70,000 hour rated life
- :: 7-year warranty
- :: IP rating: IP65, Wet Locations
Applications
- :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- :: Replace existing HID wall packs
- :: Great for use with photocell
Features
OPTIONS
