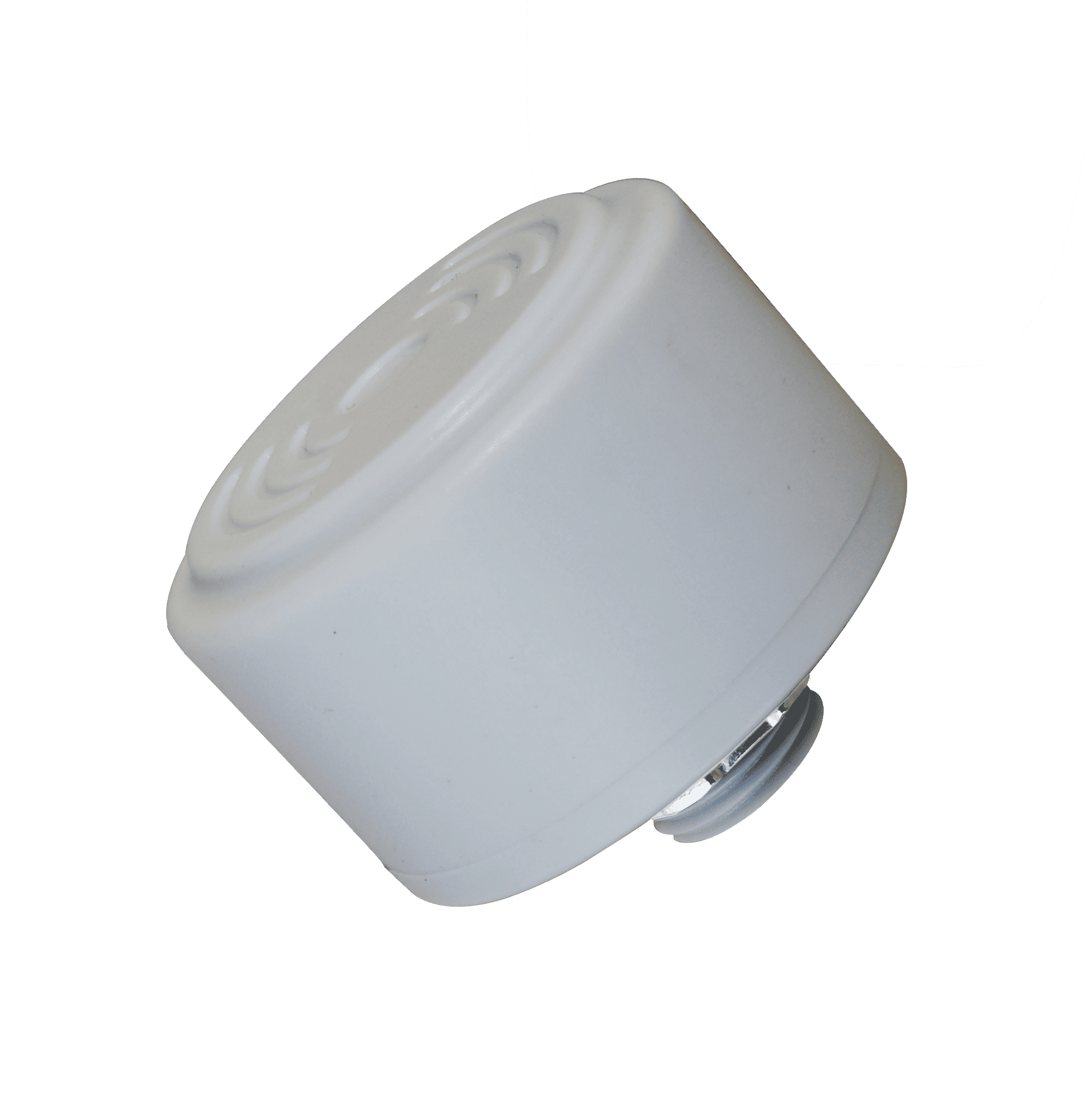

WEC-3MPC-GY Gray 120-277V Fixture Mount Photocell Switch
Technical Specs
- :: Fixture-mount dusk-to-dawn photocell switch
- :: Universal input voltage 100-277V AC, 50/60Hz
- :: Rated load at 120VAC: 5A LED driver; 800W standard ballast/tungsten
- :: Rated load at 277VAC: 3A LED driver; 1200W standard ballast/tungsten
- :: Maximum load power 1200W
- :: Power consumption 0.5W max
- :: Turn-on brightness 30-60 Lux; turn-off brightness 100-150 Lux
- :: Mounting thread 1/2-inch-14T NPS
- :: Dimensions 61.5mm diameter x 38.5mm height (2.4-inch dia. x 1.5-inch H)
- :: Operating temperature -35°C to 60°C (-31°F to 140°F)
- :: IP65 rated
- :: UL Listed to UL 773A; CE (LVD and EMC)
- :: 5-year warranty
Applications
- :: The Westgate WEC-3MPC-GY brings automatic dusk-to-dawn control to modern LED fixtures, switching lighting on at dark and off at daylight with no manual effort. Built to IP65 for indoor and outdoor lighting fixtures, complete fixture systems, and electrical control boxes, it wires inline ahead of an LED driver, ballast, or tungsten load. This SKU is the gray-finish version of the WEC-3MPC, differing from the other finish options in appearance only.
