SPEC SHEET

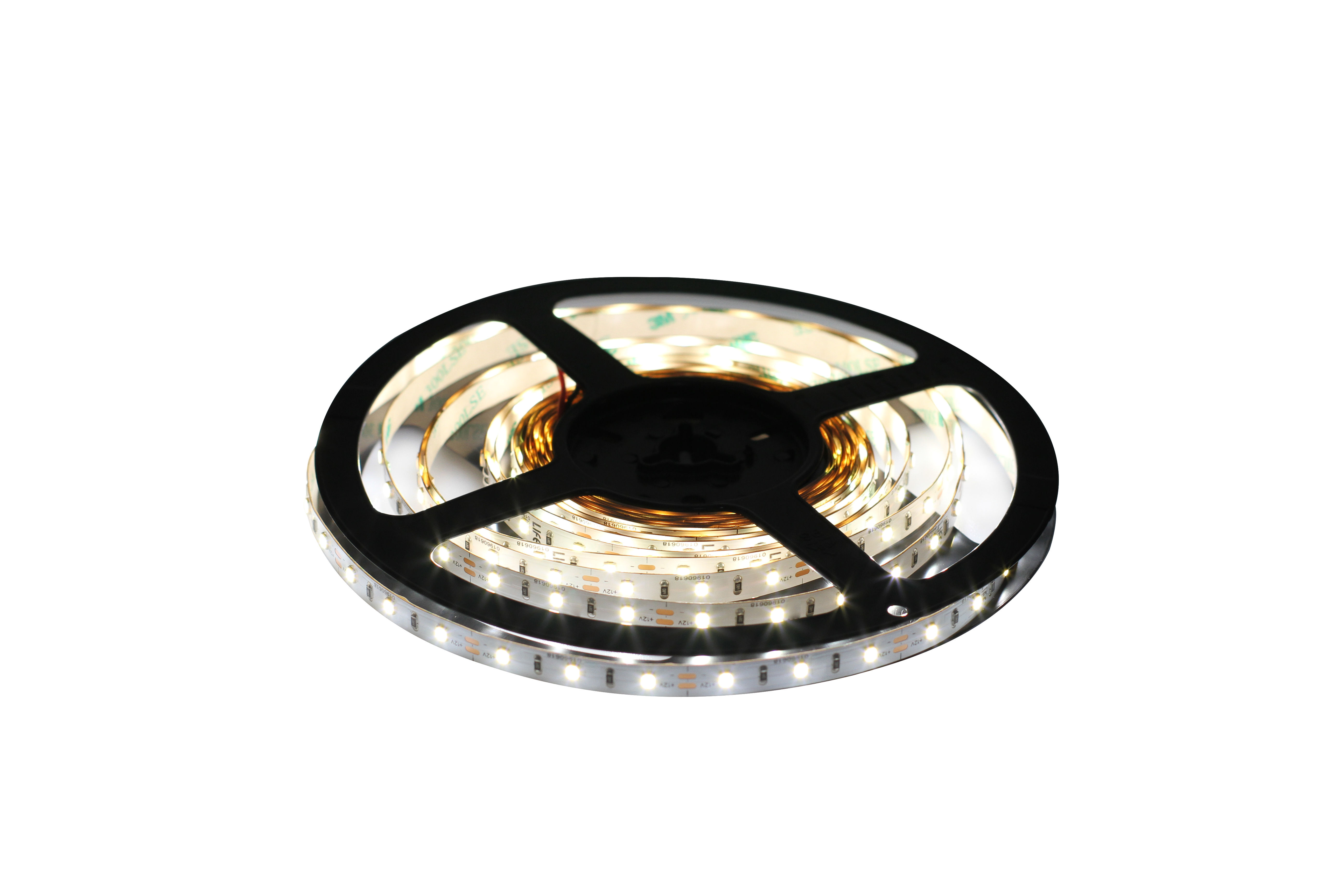

ULR-IN-98F-HO-40K

:: Voltage: 24VDC (LED driver required)
:: Wattage: 4.4W per ft.
:: Max Run: 20ft.
:: Efficacy: 75~79LM/W per ft.
:: Cutting increment: Every 4 inches
:: 3M double sided tape(9474LE) is preinstalled
:: Includes 1 female ribbon-to-power supply connector (Prewired) and 1 male plug for connection to next ribbon (Prewired)
:: IP rating: IP20
:: Dimming: Dimmable using a magnetic driver
:: LED: SMD2835 chip spaced 5/8” on center, 19 per foot, 0.23wats each chip
:: LED Type: SMD2835
:: Total lumens: 310~350LM per ft.
:: Color temperature: 4000K
:: Color rendering index: 90
:: Beam Angle: 120º
