SPEC SHEET

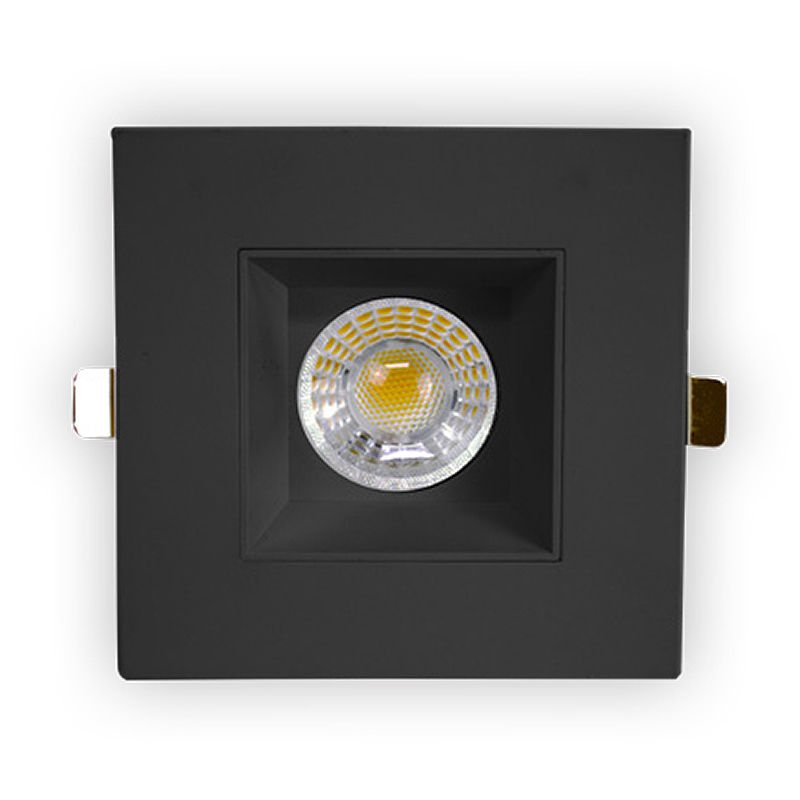

SDL2S-SB-MCT5-BK

:: Voltage: 120V AC
:: Output Voltage: 36VDC
:: Power Factor: >0.90
:: Wattage: 9W
:: Efficacy: 66 LPW
:: Total Harmonic Distortion: ≤15 %
:: 1-1/4”Thick
:: Smooth Trim, Baffle Trim Insert Included.
:: Up to 9 AWG18 Wires
:: Durable, Die-Cast Aluminum Alloy For Optimal Heat Dissipation
:: Junction box Included, Install Directly in Insulated Ceilings (IC) Without Any Thermal Housing
:: Maximum Ambient Temperature: -40°F to 104°F
:: Damp Location
:: 5-Year Warranty
:: Multi CCT (Selectable Switch on the Back of the driver )
:: Dimming: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
:: Can Rotate after Installation to Align
:: LED: High Brightness COB LED
:: Optics: White Translucent Acrylic
:: Total Lumens: 600LM
:: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
:: Color Rendering Index: CRI ≥ 90
:: Beam Angle: 36°
:: Rated Life: 50,000 hrs

:: LED recessed trims have been designed to be a flexible lighting solution for new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

OPTIONS

OPT-EM-DL1EXT
