SCX2-6FT-60W-MCT4-D

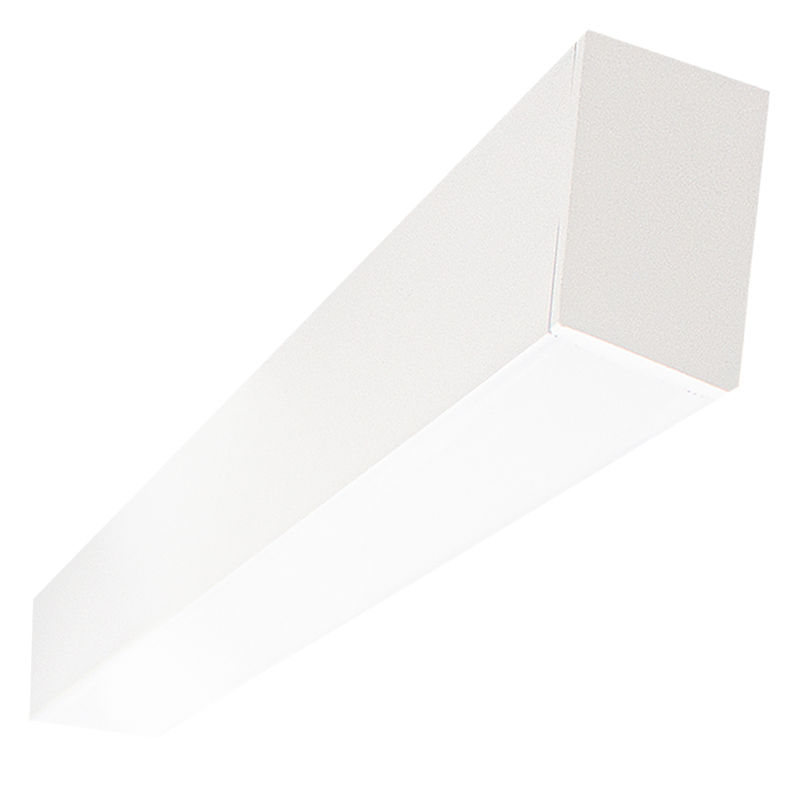

LED Superior Architectural Seamless Linear Lights, 60W, 3000K/3500K/4000K/5000K
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 60W
- :: Power Factor: >0.95
- :: LWP: 96/101/104
- :: Total Harmonic Distortion: ≤ 20 %
- :: Low Profile Modern Design
- :: Aluminum Housing With Matte White Finish
- :: Custom Colors Available
- :: Lens Snaps into Housing
- :: Track is not included. Fits HALO™ & Compatible Systems
- :: Make Different Connections Via T/L/X Joints on Both Ends
- :: Mounting Options: Surface, Suspended, Wall, Recessed
- :: IP Rating: IP54
- :: Operating Temperature: -13°F~104°F

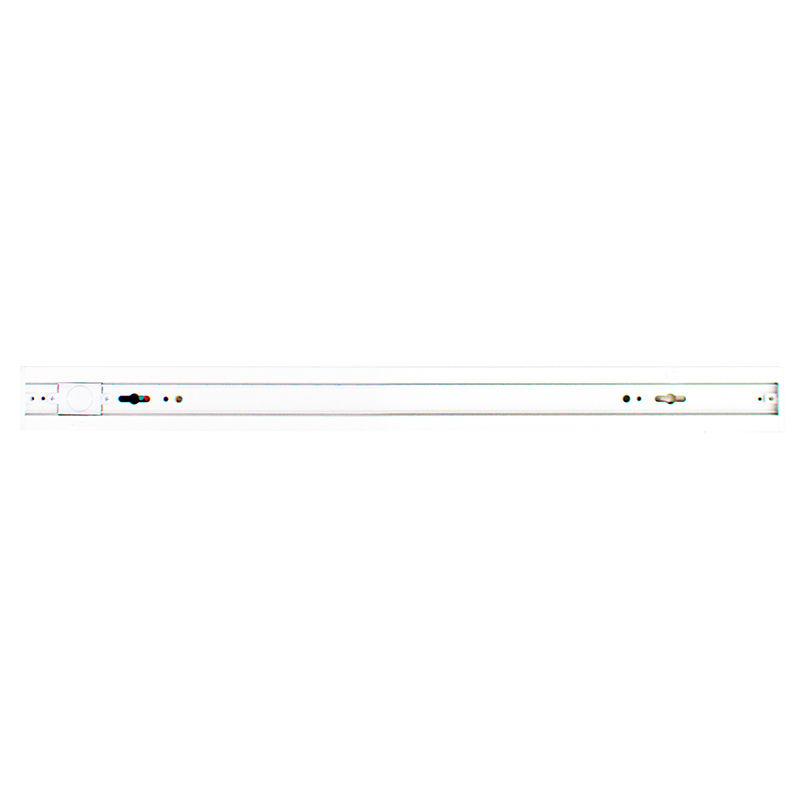

- :: Adjustable Suspension Brackets Provided on Top of The Fixtures
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 5814LM/6228LM/6081LM/6265LM
- :: Color Temperatures: 3000K/3500K/4000K/5000K
- :: Multi-CCT(Selectable Switch Inside Fixture)
- :: Color Rendering Index: CRI ≥ 80
- :: Up Light Option Available
- :: 50,000 Hours Rated Life
- :: 5-Year Warranty
- :: Beam Angle: 104.8°(H) x 100.5°(V)
Applications
- :: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions.
- :: It can be used in any indoor applications.
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | |||
|---|---|---|---|---|
 SCX2-L-MCT4  SPEC INST | Joint Type: L | |||
 SCX2-T-MCT4 SPEC INST | Joint Type: T | |||
 SCX2-X-30K-MCT4 SPEC INST | Joint Type: X | |||
 SCX2-IC-MCT4 SPEC INST | Joint Type: X |
