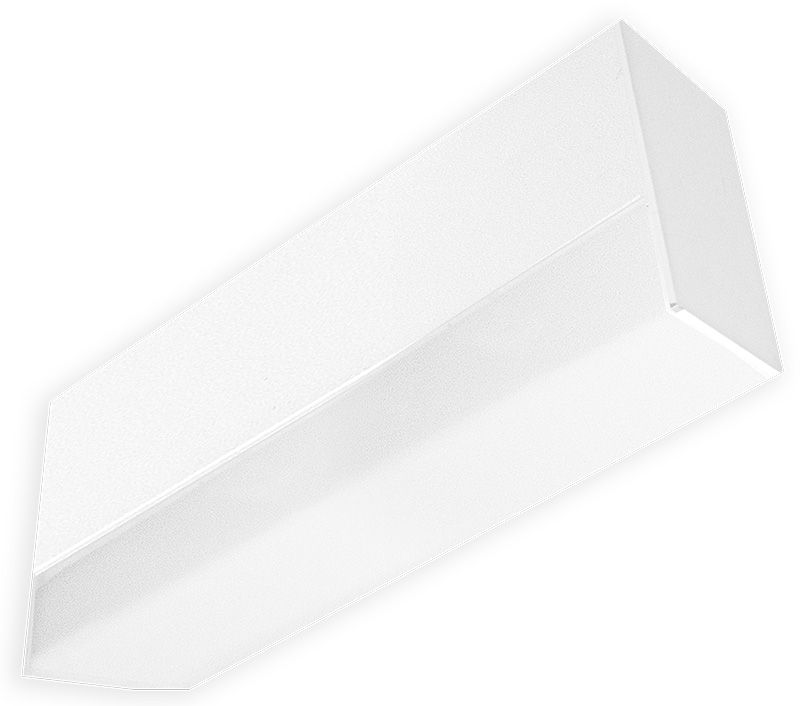

SCX-2FT-20W-MCT4-D-DL LED 2-3/4" Superior Architectural Seamless Linear Lights with Drop Lens, 20W, 3000K/3500K/4000K/5000K
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 20W
- :: Power Factor: >0.95
- :: Total Harmonic Distortion: ≤ 20 %
- :: Efficacy: 110 LPW
- :: Aluminum Housing With Matte White Finish
- :: Custom Colors Available
- :: Lens Snaps into Housing
- :: Mounting Options: Surface, Suspended, Wall, Recessed
- :: IP Rating: IP54
- :: Operating Temperature: -13°F~104°F
- :: Adjustable Suspension Brackets Provided on top of the Fixtures
- :: 5-Year Warranty
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 2200LM
- :: Color Temperatures: 3000K/3500K/4000K/5000K
- :: Multi-CCT(Selectable with Switch Inside the Fixture)
- :: Color Rendering Index: CRI ≥ 80
- :: Up Light Option Available
- :: Beam Angle: 104.8°(H) x 100.5°(V)
- :: 50,000 Hours Rated Life
Applications
- :: Ideal for offices, hotels, corridors, saloons, libraries,meeting rooms, conference halls, and the bestsolution for modern lighting solutions
- :: It can be used in any indoor applications
Features
Q & A
No questions posted yet for this product!
ACCESSORIES
| Product Name | Description | ||
|---|---|---|---|
 SCL-CS1-6FT SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Non-Power Side | ||
 SCL-CS1P-6FT SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Power Side with Cord | ||
SCL-CS1P-6FT-NC SPEC | White 6FT Adjustable Single Suspension Canopy Set with Keyhole End Connector, Power Side without Cord | ||
 SCL-ASC-500FT SPEC | 1/16-inch 500FT Roll Steel Aircraft Suspension Cable | ||
 SCL-6FT-SJTW18/5 SPEC | White 6FT SJTW 18 AWG 5-Conductor Suspension Power Cord | ||
| Heavy-Duty Auxiliary Hook for up to 1/16" Aircraft Cables with Cable Adjustment | |||
 SCL-GS10 SPEC | Adj. 10ft. 1/16in Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top | ||
SCL-GS20 SPEC | Adj. 20ft. 1/16in. 1.5mm Double Suspension Cable with Single Keyhole Connector Loop Gripper on Top | ||
 SCL-CSK-6FT SPEC | White 6FT Adjustable Suspension Canopy Complete Kit with Keyhole End Connectors |
