SCX-1FT-10W-MCT4-D-LUV

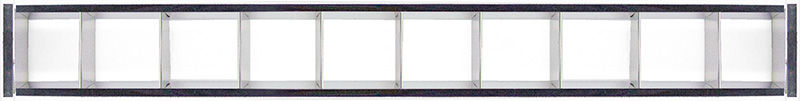

LED 2-3/4" Superior Architectural Seamless Linear Lights with Louver Lens, 10W, 3000K/3500K/4000K/5000K
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 10W
- :: Power Factor: >0.95
- :: Total Harmonic Distortion: ≤ 20 %
- :: Efficacy: 110 LPW
- :: Low Profile Modern Design
- :: Aluminum Housing With Matte White Finish
- :: Custom Colors Available
- :: Lens Snaps into Housing
- :: Lens Type: Polished Aluminum Louver Lens
- :: Mounting Options: Surface, Suspended, Wall, Recessed
- :: IP Rating: IP54
- :: Operating Temperature: -13°F~104°F
- :: Adjustable Suspension Brackets Provided on top of the Fixtures
- :: 5-Year Warranty
- :: Dimmable: 0~10V Dimming
- :: Total Lumens: 1100LM
- :: Color Temperatures: 3000K/3500K/4000K/5000K
- :: Multi-CCT(Selectable with Switch Inside the Fixture)
- :: Color Rendering Index: CRI ≥ 80
- :: Up Light Option Available
- :: 50,000 Hours Rated Life
- :: Beam Angle: 104.8°(H) x 100.5°(V)
Applications
- :: Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
- :: It can be used in any indoor applications
