SPC

SPEC SHEET

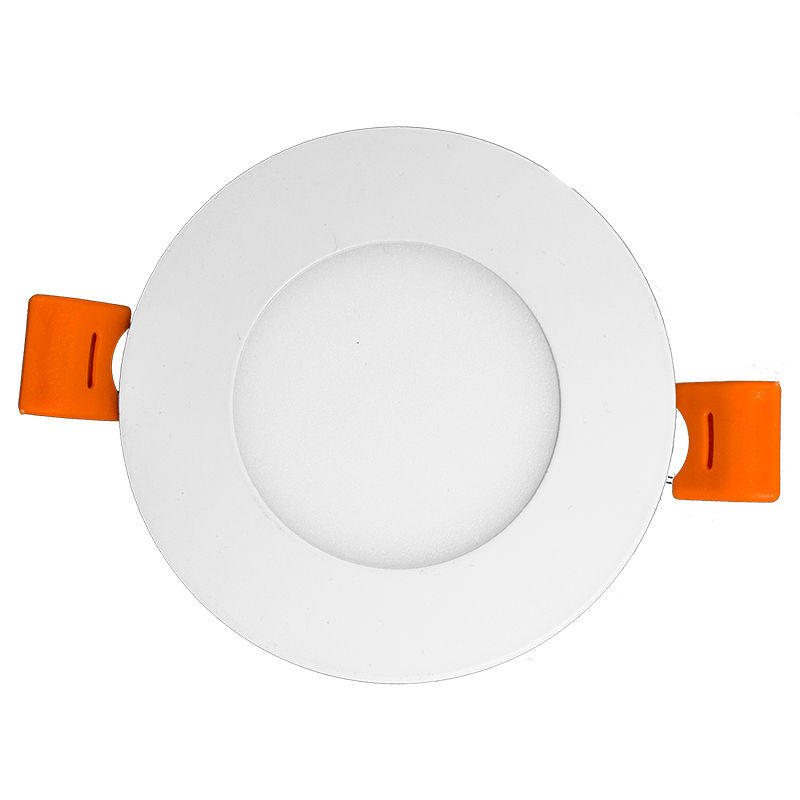

RSL4-D2W

:: Voltage: 120V AC
:: Output Voltage: 36VDC
:: Power Factor: >0.90
:: Wattage: 11W
:: Efficacy: 63 LPW
:: Total Harmonic Distortion: ≤15 %
:: 1/4”Thick
:: Up to 9 AWG18 Wires
:: Die-cast Aluminum with white powder coat finish
:: Pot Light Housing is Not Required Even for Insulated Ceiling
:: Junction box 1” Thick Included with Fixture
:: TypeI Crated: Approved for direct contact with insulation
:: Maximum Ambient Temperature: -40°F to 104°F
:: Damp Location
:: 5-Year Warranty
:: Instead of CCT info in the lighting: Dim-To-Warm (4000K to 2200K): Smoothly transitions light color temperature from cool white (4000K) to warm amber (2200K) as brightness dims, mimicking natural incandescent dimming for enhanced ambiance
:: Lens: 0.125” White Translucent Acrylic
:: Can Rotate after Installation to Align
:: LED: Seoul DOB (Driver On Board) Technology
:: Optics: White Translucent Acrylic
:: Total Lumens: 700LM
:: Color Rendering Index: CRI ≥ 80
:: Beam Angle: 100°-110°

:: LED recessed trims have been designed to be a flexible lighting solution for new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

ACCESSORIES

Product Name	Description
RSL4-RI-13 SPEC	4" round Rough-in
RSL4-RI CAT SPEC	4" round Rough-in
RSL-346-RIBH SPEC	3"/4"/6" (Adjustable) Round Galvanized Plate with Bar Hangers
RSL4-GR SPEC	Goof Ring For 4in Lights With Butterfly Wings

OPTIONS

OPT-EM-DL1EXT
