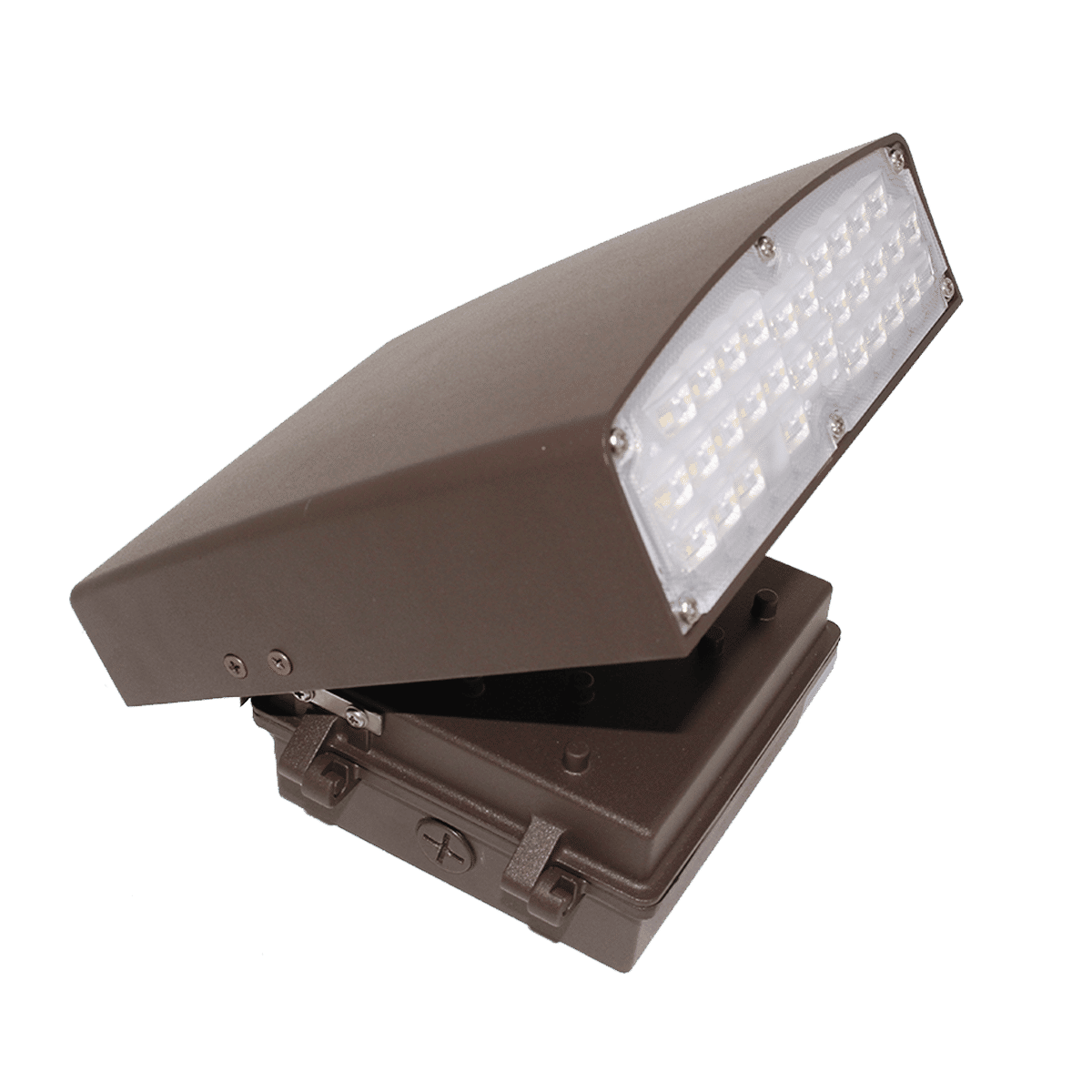

LWA-50CW
POWER & CCT-ADJUSTABLE CUTOFF WALL PACK, 120-277V, 50W, 5000K
Technical Specs
- :: Full cutoff, dark sky compliant
- :: Die-cast aluminum with powder coat finish (Dark Bronze or White)
- :: lumileds lexeon 3030 high flux LED
- :: TIR optic lens - TYPE II
- :: 120~277V
- :: CRI: >80
- :: Power Factor: 95%
- :: Operating Temp:-4°F to 104°F
- :: 70,000 hour rated life
- :: 7-year warranty
- :: Suitable for Wet Locations, IP54
Applications
- :: Ideal for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
- :: Replace existing HID flood lights/ wall packs
- :: Great for use with motion sensors or other instant on/off controls
Features
OPTIONS
