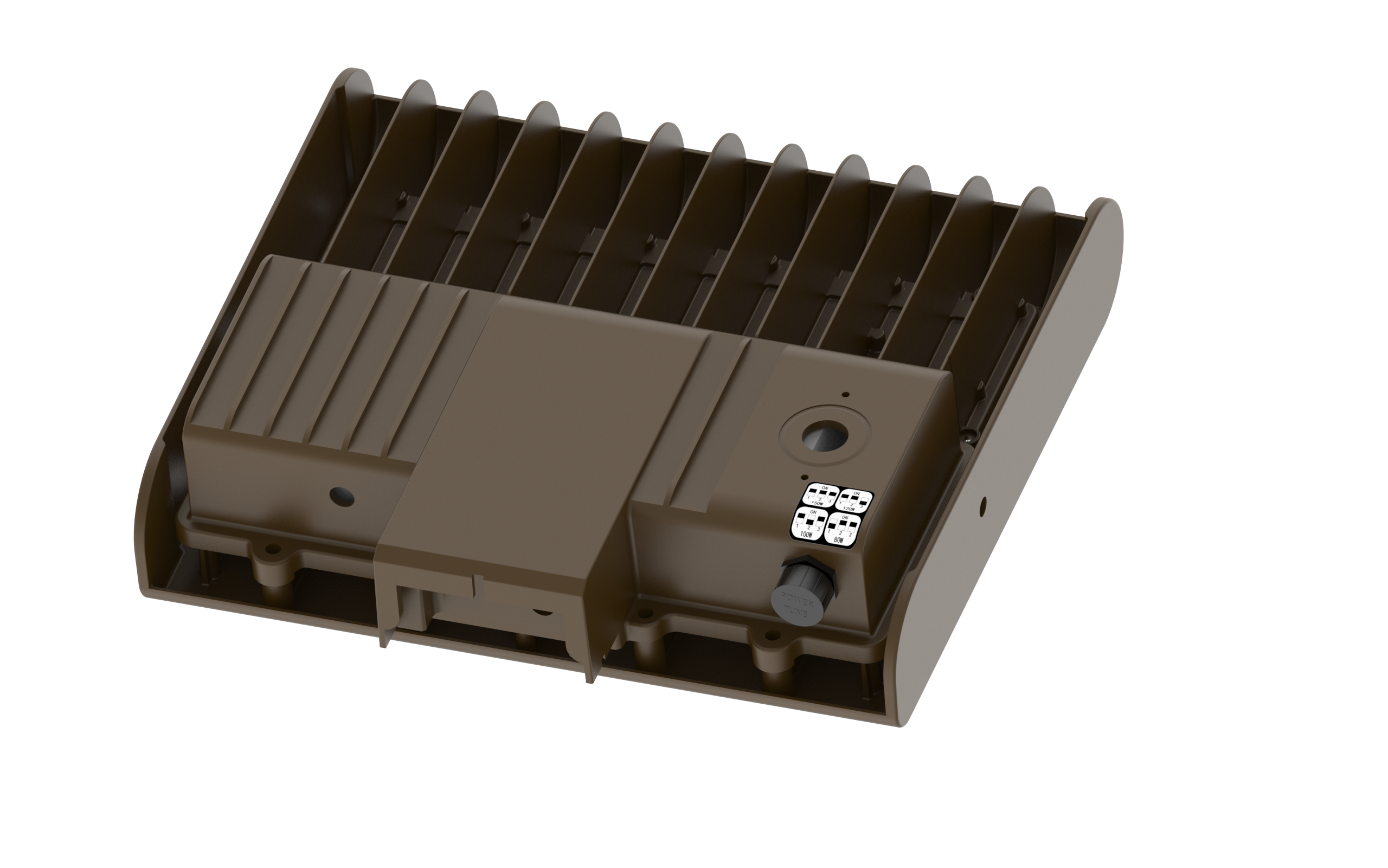

LFX-LG-50-150W-30K-480V

:: Voltage: 480V AC/50~60 Hz
:: Wattage: 50W/80W/100W/150W
:: Power Factor: >0.9
:: Efficacy: 135 LPW
:: With Snap-on & Bolt Mounting Options for One- Person Installations. Select a Mounting Option (Sold Separately)
:: Die-cast Aluminum Housing with Powder Coat Finish (Dark Bronze)
:: 10KV Lightning Surge Protection
:: IP Rating: IP65
:: Effective Projected Areas (EPA’s) are: Front = 0.38 ft ², Side = 0.30 ft ², Face = 1.05 ft ²
:: Operating Temperature: -40°F to 104°F
:: Suitable for Wet Locations
:: Dimming: 0~10V dimmable
:: Optic Lens Type: III
:: Cord Type: 6’ SJTW 18/3 AWG cable
:: Total Lumens: 21400LM Max.
:: Color Temperature: 3000K
:: Color Rendering Index: ≥ 82
:: Beam Angle: 90º X 120º

:: Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas.
:: Replace existing HID flood lights/ wall packs

ACCESSORIES

Product Name	Description
LFX-ASA SPEC CAT	Adjustable Straight Arm, 8-1/8"L x 3-1/2"W x 5-3/4"H
LFX-YK SPEC CAT	Yoke, 6"L x 2"W x 5-3/4"D
LFX-EXT SPEC CAT	Straight Arm, 3-1/3"W x 6-3/4"L x 4-3/8"H
LFX-TR-A CAT	U Bracket, 13-3/8"L x 10-1/8"W
LFX-SF CAT SPEC	Slip Fitter, 3-1/3"W x 9-7/8"L
LFX-PASF CAT SPEC	Pole Adapter for LFX-SF Slip Fitter, 6-1/8"H x 3-1/4"W x 3"D
LFX-AWB SPEC	Adjustable Wall Junction Box, 6-5/8"L x 5-3/4"W x 7-1/8"D
LF-SHROUD-A SPEC	Shroud, 10-5/8"L x 6-1/8"W x 4-3/4"D
LF-SHROUD-D SPEC	Full-Glare Shroud, 10-5/8"L x 6-1/4"W x 4-3/4"D
LFX-WG-A SPEC	Wire Guard

OPTIONS

WEC-8RC

OPT-LF3-PCK-480V

OPT-EM-LFX-LG

OPT-3MPC
