GPX-10W-SOLAR-PWM

:: Voltage: 100-277V AC 50/60Hz
:: Wattage: 10W
:: Power Factor: 0.95
:: Efficacy: 170LM/W
:: Battery Charge Time To Full Level: 6 to 12 Hours Depending On The Sunlight Quality, See The Map On Page 3
:: Battery Type: LiFePO4
:: Battery Life: More Than 2000 Cycles (2000/365days=5.47 Years) With Overcharge and Over-Discharge Protection
:: Operation On Full Charge: 10 hrs. Depending On The Sunlight Quality, See The Map On Page 3
:: Aluminum Housing , Outdoor Powder Coated

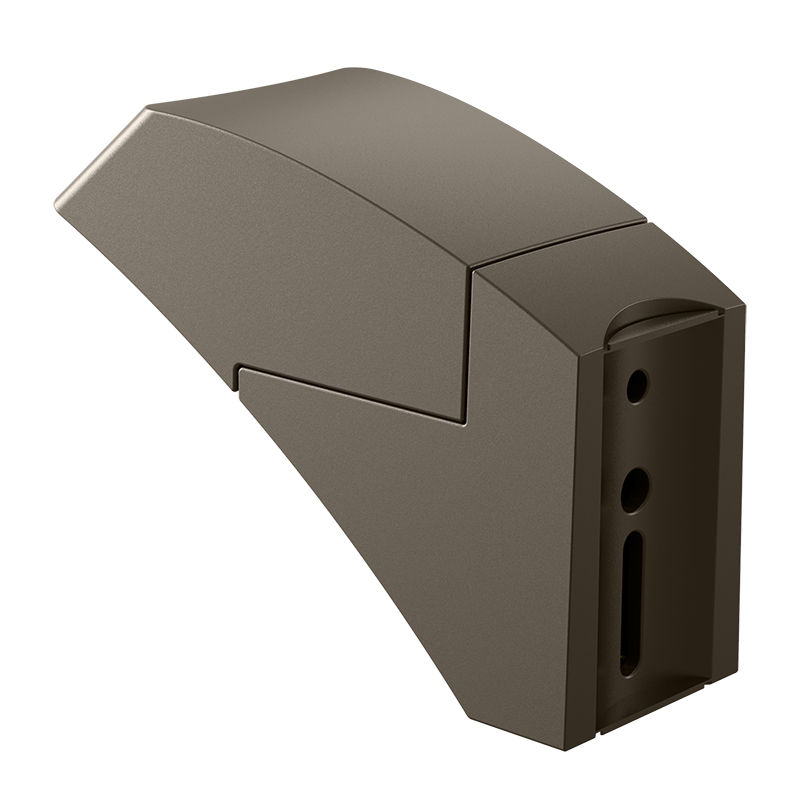

:: Pole/Wall Mount
:: Programmable Bi-Level Motion Sensor & Emergency Backup Options
:: Operating Temperature: -86°F~122°F
:: IP Rating: IP66, Suitable for Wet Locations
:: 7-Year Warranty
:: LED: SMD 3030
:: Total Lumens: 1700LM
:: Color Temperature: 3000K/4000K/5000K
:: Color Rendering index: >70
:: Beam Angle: Type V (150° X 150°)
:: Lifespan: 70000 Hrs.

:: Ideal For Garden, Amusement Park, Residential Quater , Industrial Park And Pedestrian street.

OPTIONS

OPT-EM-OD2INT

OPT-3MPC

OPT-SEN-3MR-3
