GPX-10W-SOLAR-A1
Single Arm Adjustable Solar Area/Flood Light, 10W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 100-277V AC 50/60Hz
- :: Wattage: 10W
- :: Power Factor: 0.95
- :: Efficacy: 170LM/W
- :: Battery Charge Time To Full Level: 6 to 12 Hours Depending On The Sunlight Quality, See The Map On Page 3
- :: Battery Type: LiFePO4
- :: Battery Life: More Than 2000 Cycles (2000/365days=5.47 Years) With Overcharge and Over-Discharge Protection
- :: Operation On Full Charge: 10 hrs. Depending On The Sunlight Quality, See The Map On Page 3
- :: Aluminum Housing , Outdoor Powder Coated

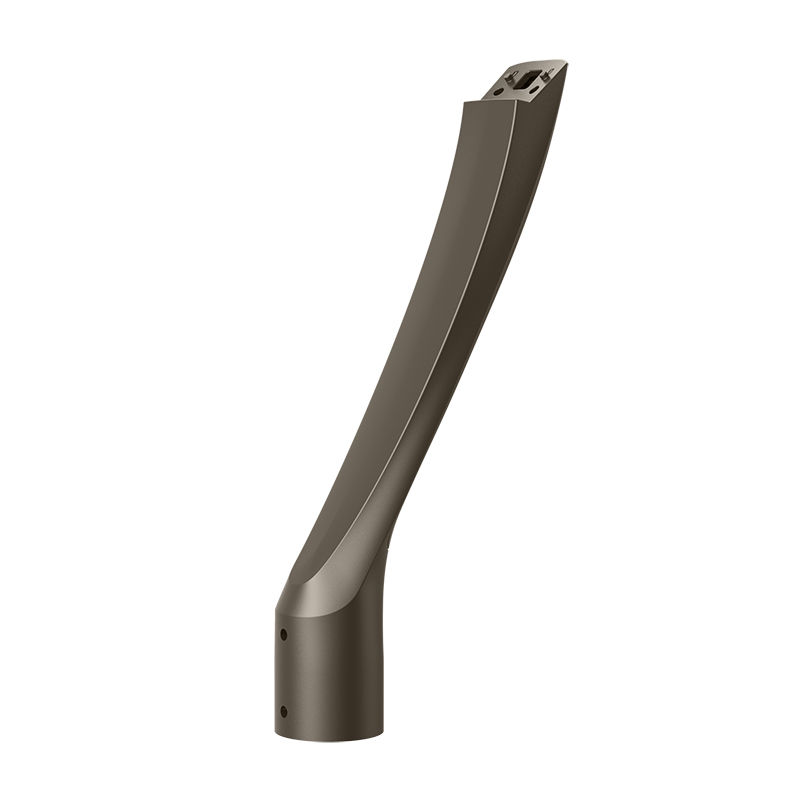

- :: Single Arm for 2-3/8 “Poles
- :: Programmable Bi-Level Motion Sensor & Emergency Backup Options
- :: Operating Temperature: -86°F~122°F
- :: IP Rating: IP66, Suitable for Wet Locations
- :: 7-Year Warranty
- :: LED: SMD 3030
- :: Total Lumens: 1700LM
- :: Color Temperature: 3000K/4000K/5000K
- :: Color Rendering index: >70
- :: Beam Angle: Type V (150° X 150°)
- :: Lifespan: 70000 Hrs.
Applications
- :: Ideal For Garden, Amusement Park, Residential Quater , Industrial Park And Pedestrian street.
