FLV12-32W-30K 3000K 32W 12V Integrated Landscape Flood Light, Bronze
Technical Specs
- :: Wattage: 32W
- :: Lumens: 3200
- :: Voltage: 12V AC/DC (tolerance 12-18V AC, 10-26V DC)
- :: Color Temperature: 3000K Warm White
- :: Beam Angle: 35°
- :: Efficacy: 100 LM/W
- :: CRI: >80
- :: Power Factor: >0.9
- :: Light Source: Lumileds (non-dimmable)
- :: Housing: ADC 12 cast aluminum with bronze powder-coat finish
- :: Lens: Optical polycarbonate

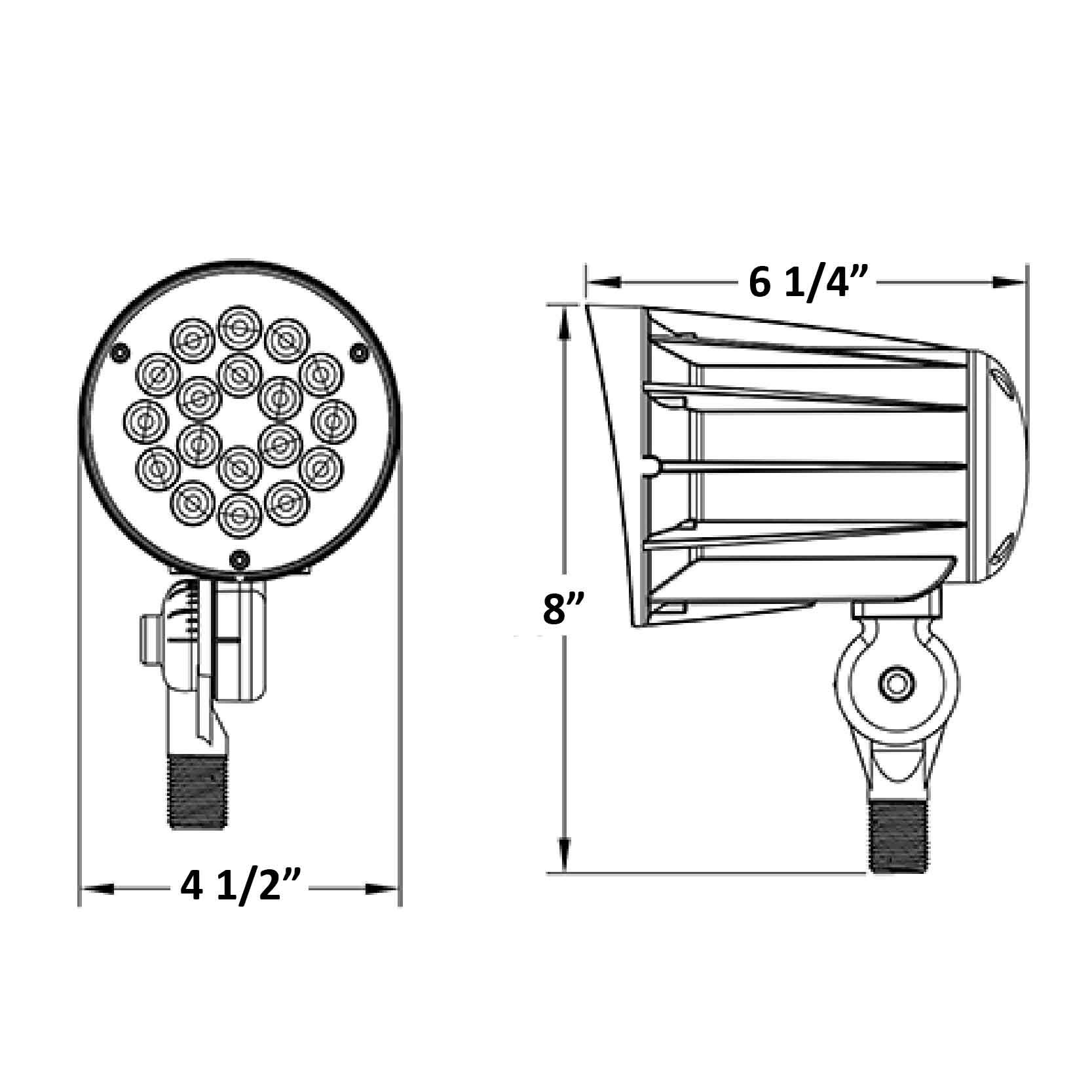

- :: Dimensions: 8-inch (H) x 6-1/4-inch (W) x 4-1/2-inch (D)
- :: Operating Temperature: -40°F to 104°F
- :: Lifespan: 50,000 hours
- :: IP Rating: IP65, Wet Locations
- :: Warranty: 7-Year
- :: Certifications: LM79 tested, CRI 80
Applications
- :: The FLV12-32W-30K is the largest, highest-output fixture in the FLV12-12V Series, casting a warm 3000K glow that is ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Built for the biggest jobs in the family, it washes tall facades, large trees, and building features with dependable, inviting light. Choose this 3000K warm-white version for a traditional tone; opt for the 5000K FLV12-32W-50K where a crisp, high-visibility white is preferred.
