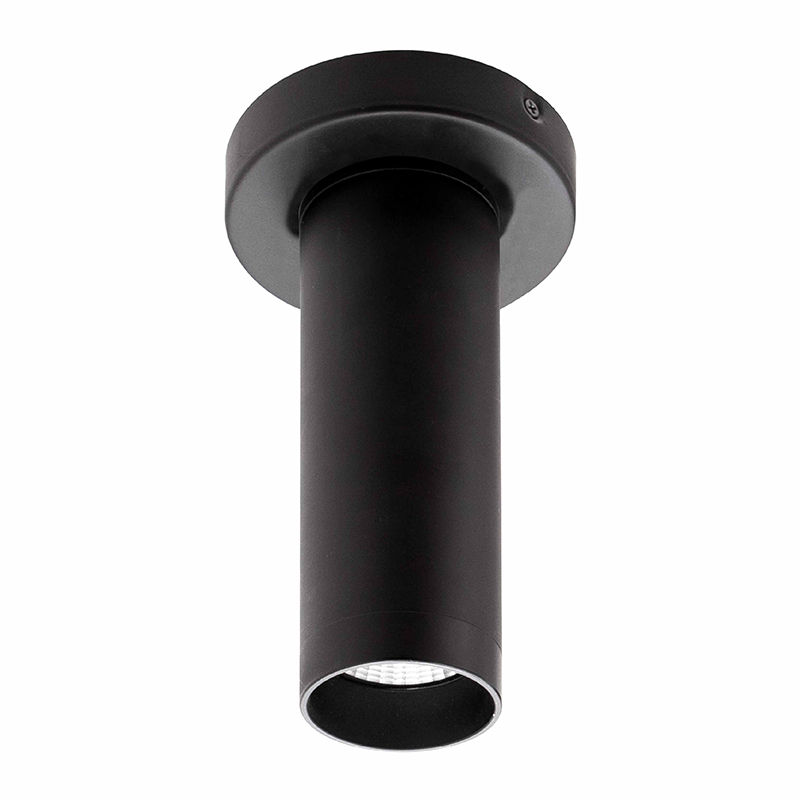

CMC3-MCTP-DD-BK

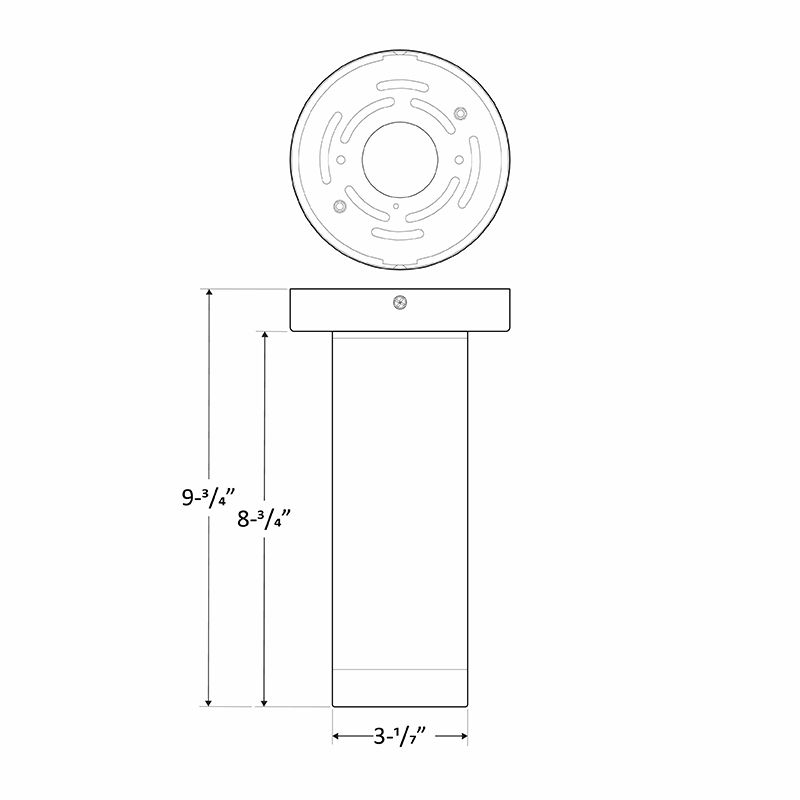

3" Round Architectural Ceiling & Suspended Cylinders, 5W/7W/9W, 3000K/4000K/5000K
Technical Specs
- :: Voltage: 120-277V
- :: Power Factor: >0.90
- :: THD: <20%
- :: Wattage: 5W/7W/9W
- :: Efficacy: 75 LP

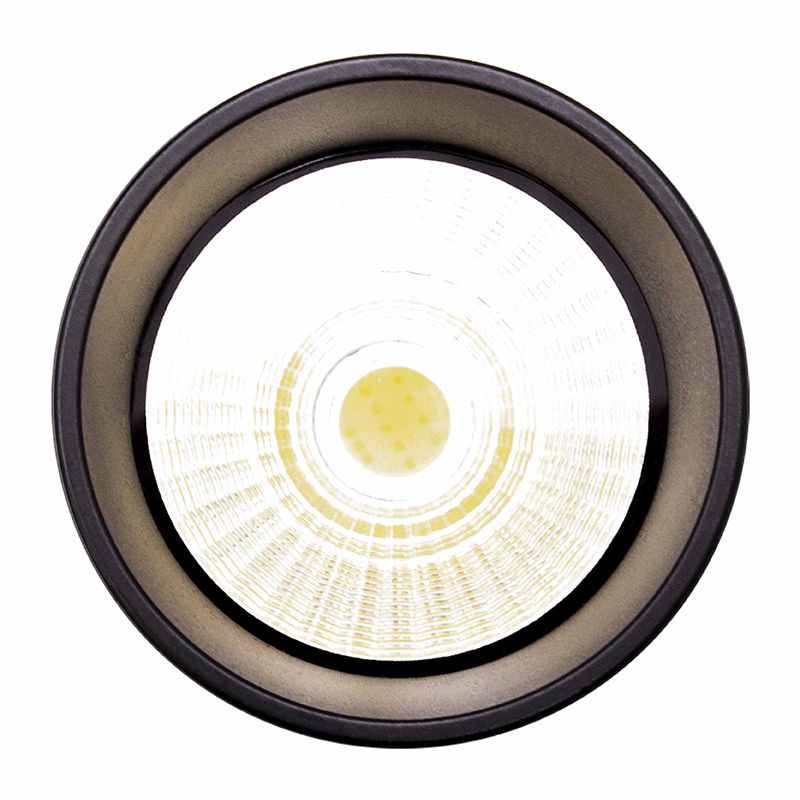

- :: Aluminum Housing & Glass Lens
- :: Suspension Cable & Canopy Set Accessories Avail.
- :: Universal Swivel W/ Rod Kit Accessories Avail. Ambient
- :: Operating Temperature: -13ºF to 113ºF
- :: Rated life: 70,000 hrs
- :: IP Rating: IP40 suitable for damp locations
- :: Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V
- :: Total Lumens: 675LM
- :: Color Temperatures: 3000K/ 4000K/ 5000K
- :: Color Rendering Index: CRI ≥ 80
- :: Beam Angle: 25°
- :: 5-Year Warranty
Applications
- :: 3" Cylinder, Pendant & Ceiling Cylinder Light, Aluminum Cylinder, White Aluminum Housing, Polycarbonate (PC) Lens
Features
ACCESSORIES
| Product Name | Housing Finish | Description | |||
|---|---|---|---|---|---|
| Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, White | |||||
| Universal Swivel W/ Rod Kit, 18 Or 36 Inches, 5-Wire, Black | |||||
| Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, White | |||||
| Universal Swivel W/ Rod Kit, 24 Or 48 Inches, 5-Wire, Black | |||||
| Universal Swivel W/ Rod Kit, 40 Or 80 Or 120 Inches, 5-Wire, White | |||||
| Universal Swivel W/ Rod Kit, 40 Or 80 Or 120 Inches, 5-Wire, Black | |||||
 CMC3-HCDK-BK  SPEC | 3-inch ceiling mount cylinder honeycomb diffuser kit, Black | ||||
 CMC-CS-8FT-BK SPEC | Suspension Cable & Canopy Set For CMC Series, 8FT, 5-wire, Black | ||||
 CMC-CS-8FT-WH SPEC | Suspension Cable & Canopy Set for CMC Series, 8FT, 5-Wire, White | ||||
 CMC3-TRM-AG SPEC | 3-inch ceiling mount cylinder trim, Anodized Gold (AG) | ||||
| Black | Pendkit accessory for track and pendant lights | ||||
 CMC3-TRM-BN SPEC | 3-inch ceiling mount cylinder trim, Brushed Nickel (BN) | ||||
| White | Pendkit accessory for track and pendant lights | ||||
 CMC-JBCK-BK SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy | ||||
 CMC-JBCK-WH SPEC | Cylinder And Pendant Lighting J-Box Cover Canopy | ||||
 CMC3-HCDK-AG SPEC | 3" Cylinder Honeycomb Diffuser Kit, Anodized Gold |
